Hell’s Gate Mod Clone: Explained And Compared
Contents
A Hell’s Gate mod clone copies the Yep Hell’s Gate, a dual-battery box mod built to run one or two atomizers at once. Clones sell for less than the original, but build quality and safety vary a lot.
We could not find an official Yep spec page for the Hell’s Gate, and seller listings disagree on key details. This post covers the design, how a dual-atomizer mod works, and the battery safety it demands.
Key Takeaways
- The Hell’s Gate is a dual 18650 box mod with two 510 connections for running two atomizers
- Seller listings disagree on whether a given version is fully mechanical or has protection circuitry
- Battery knowledge and Ohm’s law matter, especially when two coils fire together

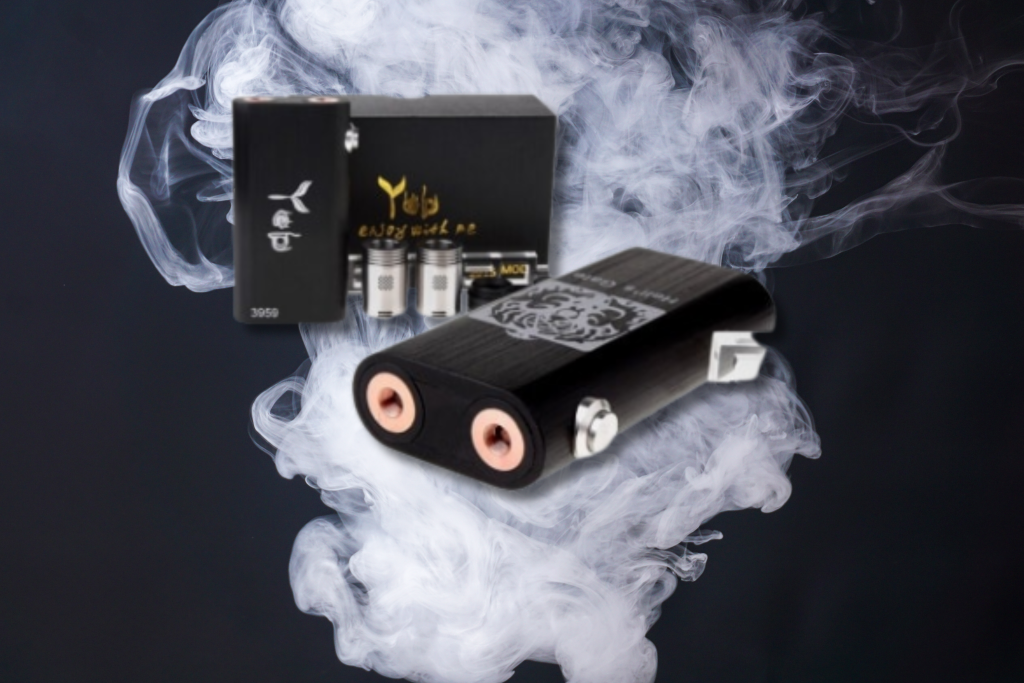

Hell’s Gate Mod Clone Overview and Key Features
The Hell’s Gate design combines a box mod body, two 510 connections and dual 18650 batteries. It is often sold bundled with RDAs such as the Yep RDA V2.
Design and Construction
Clone materials vary, and listings rarely state them accurately. Check the build quality, threading and button feel when the mod arrives.
The device uses a side-mounted firing button on many versions. Make sure it has a reliable lock or switch, so it can't fire in a bag or pocket.
The two 510 connections sit side by side on the top plate. Check that each has a solid center pin, and that your atomizers fit side by side without touching.
| Component | What to check |
|---|---|
| Center pins | Solid contact, correct height |
| Top plate | Room for two atomizers |
| Threading | Clean 510 threads |
| Battery door | Secure closure, vent holes |
Dual Atomizer Configuration
This mod stands out because it can run two RDAs at once, each on its own 510 threading connection.
When both atomizers fire together, the battery has to supply the current for both coils. Two coils on one circuit act like one lower-resistance load, so the total current is higher than for either coil alone.
Build both atomizers to similar resistances, measure each one, and work out the combined current before you vape. Never run builds that exceed your batteries' continuous discharge rating.
Performance and Vapor Production
On a mechanical version, the output depends on battery charge and coil resistance, so vapor gets weaker as the batteries drain. Clean contacts reduce voltage drop.
Use authentic batteries from a reputable source with a continuous discharge rating that covers your build. Wide-bore drip tips and open airflow suit the high-output builds this mod is designed for.
Battery Setup and Safety
Seller listings disagree on whether the two 18650 cells are wired in series or parallel, and whether a version includes protection circuitry. Confirm both with the seller before you build a coil.
The difference matters. Series wiring roughly doubles the voltage, which greatly increases the current through a low-resistance build.
If your unit is fully mechanical, it has no short circuit or low voltage protection. Inspect battery wraps before every use, and replace damaged or wet batteries, as the FDA advises.
Use a matched pair of the same brand, age and charge level, and store loose batteries in a case. Mechanical and dual-atomizer mods are for experienced adult vapers only. The CDC notes that e-cigarette aerosol is not harmless water vapor and usually contains addictive nicotine.
Sources
- Tips to Help Avoid Vape Battery Fires or Explosions, U.S. Food and Drug Administration
- About E-Cigarettes (Vapes), Centers for Disease Control and Prevention
