The Deviate DNA40 mod brought temperature control vaping to a wider audience when it launched. This device used Evolv’s DNA40 chip, which was one of the first mainstream chipsets to offer reliable temperature control functionality. Many vapers still ask about this mod because it represents an important step in vaping technology.
The Deviate DNA40 mod is a box-style vaping device that features the DNA40 chipset, offering 40 watts of power output and temperature control capabilities with nickel coils. The mod became known for its solid build quality and accurate performance. It appealed to vapers who wanted more control over their vaping experience.
Understanding what made the Deviate DNA40 special helps explain why temperature control became a standard feature in modern devices. The mod’s design choices and chip performance set expectations for what vapers could get from their equipment. This article looks at the features, design elements, and real-world performance of the Deviate DNA40.
Key Takeaways
- The Deviate DNA40 mod uses Evolv’s DNA40 chip to deliver 40 watts of power and temperature control
- This device helped make temperature control vaping more accessible to everyday users
- The mod’s build quality and performance made it a reliable option during the early days of TC vaping
Deviate DNA40 Mod: Features, Design, and User Experience

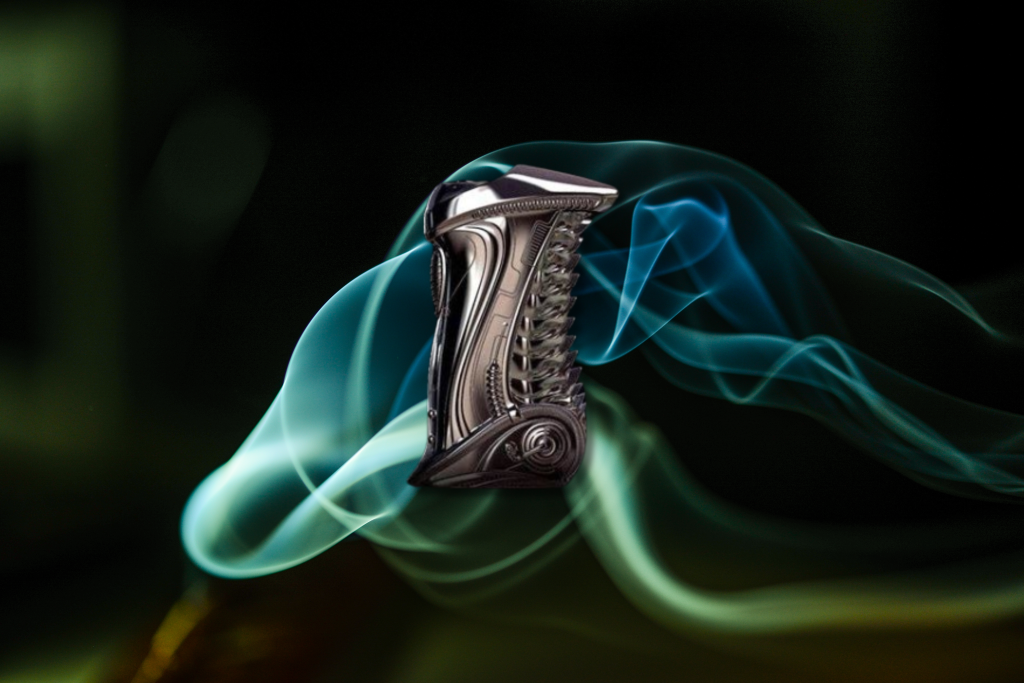

The Deviate DNA40 mod from MV Authentics incorporates the Evolv DNA40 board and delivers 40W of power with temperature control functionality. Its cast zinc chassis draws aesthetic influence from biomechanical art, while the OLED display and 3-button operation provide straightforward user interaction.
Key Specifications and Internal Hardware
The Deviate DNA40 mod runs on the Evolv DNA40 board, which supports a maximum output of 40W. This chip enables both standard wattage mode and temperature control capabilities.
The device requires a single 18650 battery for operation. The OLED screen displays real-time vaping data including output voltage, resistance, and battery level.
The DNA40 board processes atomizer resistance down to 0.1 ohm. The mod operates through a 3-button interface that controls all settings and firing functions. MV Authentics designed the Deviate to work with various tank and dripper configurations compatible with the 510 connection standard.
Temperature Control Capabilities and Coil Compatibility
The Evolv DNA40 board in the Deviate mod offers temperature protection technology. This feature works specifically with Ni200 wire coils, which have a predictable resistance change as temperature increases.
Temperature control mode prevents dry hits and burnt wicks by limiting coil temperature. The board monitors resistance changes in real-time and adjusts power output automatically. Users can set their preferred temperature threshold through the device menu.
The Deviate also fires standard Kanthal coils in wattage mode. When using Kanthal, the temperature control function does not activate since this wire type lacks the necessary resistance characteristics. The mod automatically detects coil material and switches between appropriate modes.
Chassis Construction and Aesthetic Influence
MV Authentics constructed the Deviate from a cast zinc chassis. This material provides durability while keeping the device relatively lightweight for pocket carry.
The design takes aesthetic influence from H.R. Giger’s biomechanical art style. The body features organic curves and textured surfaces that reference this artistic approach. These design elements distinguish the Deviate from standard box mods in the ecigs market.
The build quality suits daily vaping use. The zinc construction resists minor impacts and normal wear. MadVapes distributed this mod as part of their product lineup when it was available.
User Interface and Operation Modes
The Deviate operates through a 3-button system below the OLED display. The fire button sits on the side of the chassis for thumb activation. Two smaller buttons handle menu navigation and setting adjustments.
The OLED screen shows key information during operation. Users can access stealth mode, which dims or turns off the display to reduce attention. The flip screen orientation feature rotates the display 180 degrees to accommodate different hand positions or preferences.
The DNA 40 board stores user settings between battery changes. Menu options include wattage adjustment, temperature limits, and screen preferences. The interface responds quickly to button inputs without noticeable lag during normal operation.
